Product Description

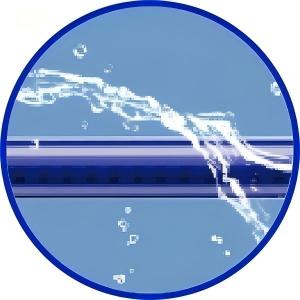

Uniform hydrophilic coating on the outer surface activates with saline irrigation, reducing friction coefficient by up to 90%. Enables smooth navigation through tortuous anatomy such as the carotid siphon, minimizing vascular trauma and procedure time.

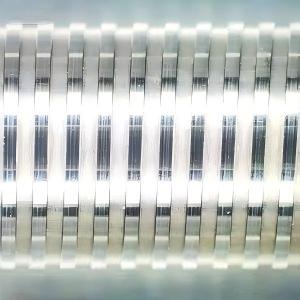

Precision-wound stainless steel coil (SS304/SS316L) provides consistent radial support along the catheter shaft. The coil structure maintains lumen patency under high vacuum pressure, preventing tube collapse during aspiration. Variable pitch design available for graduated flexibility from proximal to distal end.

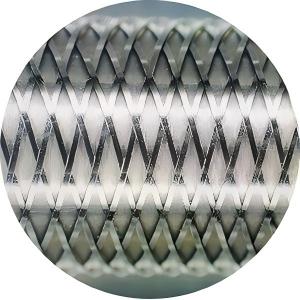

Diamond-pattern stainless steel wire braid (SS304/SS316L/Nitinol) embedded within the polymer wall structure. Provides torsional rigidity for precise torque transmission, enhances burst pressure resistance, and prevents kinking in acute angulations. Braid angle and density customizable per clinical requirements.
Ultra-thin PTFE (polytetrafluoroethylene) inner liner creates a smooth, low-friction luminal surface. Maximizes inner lumen diameter for efficient thrombus evacuation while maintaining minimal outer diameter for vessel compatibility. Chemically inert and biocompatible.
Spec | OD | ID | Length | Guide Catheter Compatibility |
|---|---|---|---|---|
Standard | 5 Fr (1.67 mm) | 0.050"–0.055" | 115 cm | ≥7 Fr |
Standard | 6 Fr (2.0 mm) | 0.055"–0.068" | 115 / 125 / 132 cm | ≥8 Fr |
Large Bore | 7 Fr (2.3 mm) | 0.068"–0.081" | 115 / 125 / 132 cm | ≥9 Fr |
Large Bore | 8 Fr (2.7 mm) | 0.081"–0.088" | 125 cm | ≥10 Fr |
Lengths: 115 / 125 / 132 / 140 / 150 cm. Custom available.
Parameter | Range |
|---|---|
Outer Diameter | 4 Fr – 10 Fr |
Inner Diameter | 0.038" – 0.088" (subject to OD/wall compatibility) |
Wall Thickness | 0.10 – 0.25 mm |
Coil Material | SS304 / SS316L / Nitinol |
Braid Material | SS304 / SS316L / Nitinol / Tungsten |
Outer Polymer | Pebax 2533–7033 / PA12 / TPU / Polyurethane |
Inner Liner | PTFE |
Coating | Hydrophilic / Bare |
Tip Design | Straight / Curved / Tapered |
Radiopaque Markers | Pt/Ir bands, 1–3 bands, custom positions |
Layer | Material | Function |
|---|---|---|
Outer | Pebax / PA12 / TPU | Structural support, flexibility gradient |
Reinforcement | Coil + Wire Braid (dual-layer) | Radial strength, kink resistance, torque control |
Inner | PTFE | Low friction lumen, chemical resistance |
Surface | Hydrophilic Coating | Lubricity, vessel navigation |
Tip Configuration: Pre-shaped curves (Simmons, Cobra, etc.), laser-cut tips, or flared tips
Durometer Gradient: Multi-zone hardness from soft distal to stiff proximal
Reinforcement Design: Single/dual layer coil, variable pitch braid, hybrid coil+braid construction
Wire Type: Round or flat wire; single or dual layer braiding
Surface Treatment: Hydrophilic coating, PTFE coating, or bare
Markers: Pt/Ir radiopaque bands at custom positions for fluoroscopic visibility
Connector: Standard Luer lock or custom hub design
