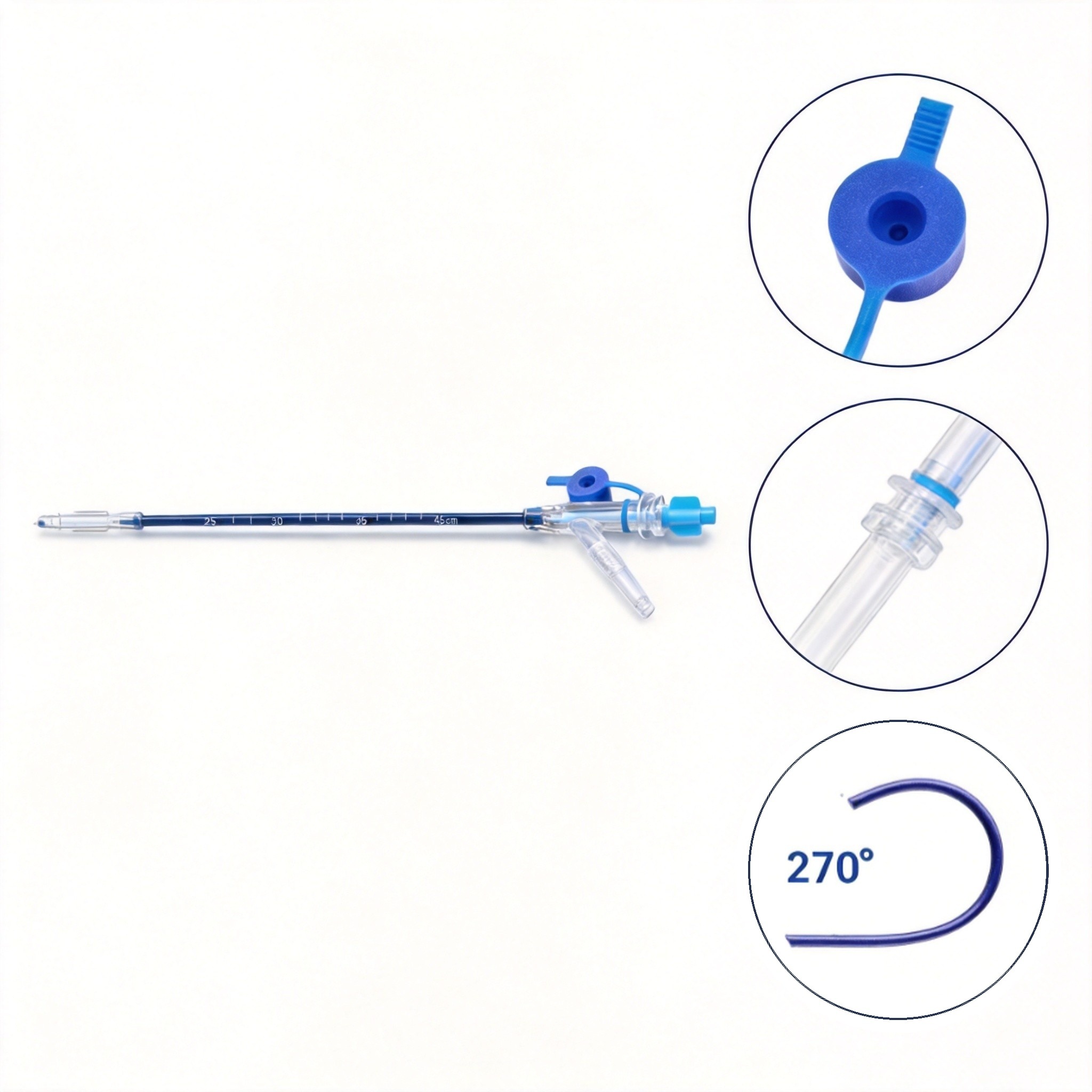

Flexible Ureteral Access Sheath

Flexible Ureteral Access Sheath for fURS/RIRS procedures. The distal tip passively deflects up to 270°, with a dual-lubrication system (PTFE inner liner + hydrophilic outer coating) and atraumatic soft tip. Available in 9Fr–14Fr, working lengths 25–45 cm. Fully customizable to OEM/ODM requirements. All dimensions are theoretical values; actual specifications subject to customer drawings.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description

Core Features

1. Adjustable Pressure Relief Valve

Maintains low intrarenal pressure while ensuring procedural efficiency, reducing the risk of potential complications.

2. Hydrophilic Ultra-Smooth Coating

Provides an ultra-low friction outer surface, improving procedural efficiency and minimizing tissue trauma.

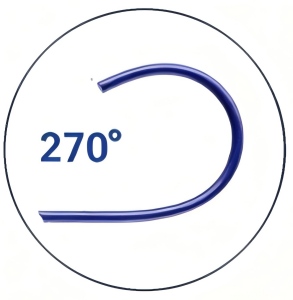

3. Superior Deflection Performance

Enables direct access to lesions in complex anatomical environments.

4. Reinforced Coil Construction

Provides mechanical support, ensuring lumen patency and operational stability under demanding conditions.

5. PTFE Inner Liner

Ensures a smooth inner lumen with reduced friction, facilitating easy instrument insertion and removal.

Recommended Specifications

OD	Available Lengths	Compatible Scopes
9 Fr (3.0 mm)	25 / 30 / 35 cm	≤7.5 Fr
10 Fr (3.3 mm)	25 / 30 / 35 / 40 cm	≤8.0 Fr
11 Fr (3.7 mm)	25 / 30 / 35 / 40 / 45 cm	≤8.7 Fr
12 Fr (4.0 mm)	25 / 30 / 35 / 40 / 45 cm	≤9.5 Fr
13 Fr (4.3 mm)	35 / 40 / 45 cm	≤10.0 Fr
14 Fr (4.7 mm)	35 / 40 / 45 cm	≤10.5 Fr

Lengths: 25 / 30 / 35 / 40 / 45 cm. Custom lengths available upon request.

OEM Customization Options

Parameter	Range
Outer Diameter	9 Fr – 14 Fr
Working Length	25 / 30 / 35 / 40 / 45 cm (custom available)
Deflection Angle	Up to 270° (passive)
Deflectable Tip Length	7–10 cm (customizable)
Coil Material	SS304 / SS316L
Outer Polymer	Pebax / PA12 / TPU
Inner Liner	PTFE
Outer Coating	Hydrophilic / Bare
Tip Design	Atraumatic soft tip / Tapered
Hub Type	Valve hub (with sealing diaphragm) / Standard Luer
Depth Markings	Custom interval and position

Tube Structure

Layer	Material	Function
Outer	Pebax / PA12 / TPU + Hydrophilic Coating	Structural support, smooth insertion
Reinforcement	Stainless Steel Coil	Radial strength, kink resistance, flexibility
Inner	PTFE	Low friction lumen, scope protection

Customization Details

Tip Configuration: Soft atraumatic tip, tapered tip, or custom profile
Durometer Gradient: Multi-zone hardness transition from flexible distal to rigid proximal

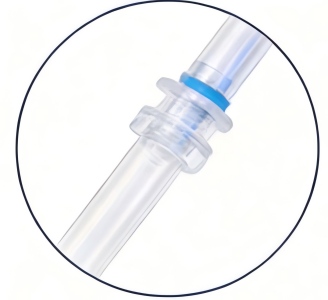

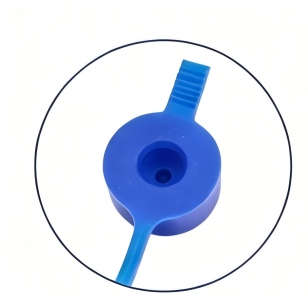

Valve Hub: Integrated sealing diaphragm for instrument exchange without fluid leakage
Deflectable Section: Adjustable length and stiffness of the bendable segment
Surface Treatment: Hydrophilic coating, PTFE coating, silicone coating, or bare
Depth Markings: Laser-etched at custom intervals
Packaging: Double-layer black poly bags with product label and Certificate of Inspection; custom packaging available

Intended Use

Flexible ureteral access sheaths are intended to establish a working channel through the ureter during ureterorenoscopy (fURS/RIRS). They allow repeated passage of flexible ureteroscopes and ancillary instruments (laser fibers, graspers, baskets) while protecting the ureteral wall, maintaining irrigation flow, and reducing intrarenal pressure. The deflectable tip improves access to the lower pole and other hard-to-reach calyces.

This product is intended for use by trained medical professionals only. Product availability and specifications may vary by region.
