Design Analysis of Stent Delivery Catheters

Design Analysis of Stent Delivery Catheters

Stent delivery systems, particularly those involving balloon catheters, have been a staple in various medical procedures for many years. This longevity does not signify a stagnation in innovation; on the contrary, the field of medical device design continues to evolve, with new and highly innovative solutions being developed. This includes stent delivery systems capable of reaching the most inaccessible areas of the body, such as the brain. Innovations are also enhancing performance in existing applications, and technologies like robotics are pushing the boundaries further.

When embarking on the design process for a stent delivery system, there are multiple factors that medical device design engineers must consider. The following information provides a brief introduction to these considerations.

The Starting Point:

The primary objective of a stent delivery system design process is to develop a device that delivers optimal performance levels while also increasing the confidence of medical professionals. This is crucial because the success of an innovative stent delivery system is not only about technological advancements but also about gaining the trust of physicians who must have faith in and be comfortable using the device.

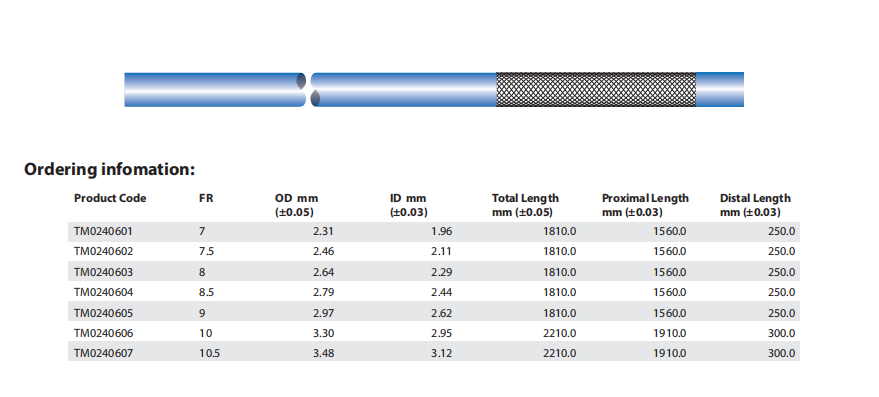

It is essential to consider the applications for which the new device is being designed, as this will guide many of the design decisions made during the process. For instance, stent delivery systems for neurovascular applications require ultra-low-profile catheters. In contrast, those designed for peripheral vascular applications may have catheters as large as 8 Fr, while the smaller and more tortuous vessels in the brain require catheters as small as 2 Fr.

Designing the Catheter:

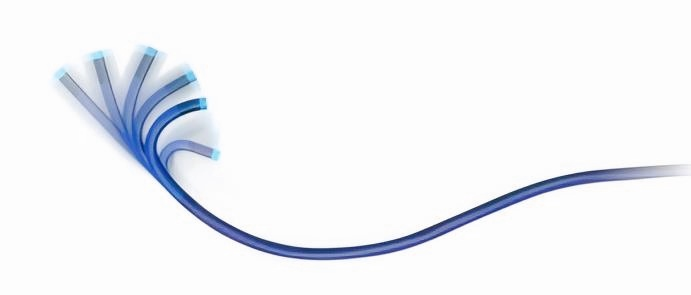

The catheter, as the delivery device element of the system, is of paramount importance. It should be optimized for pushability, trackability, and flexibility to ensure that physicians can accurately position the stent.

While pushability, trackability, flexibility, and tensile strength are typically the most critical performance characteristics, there are various other considerations in catheter design for stent delivery systems. Some of the most important include:

- The catheter typically features a lubricous inner diameter, often lined with PTFE (Polytetrafluoroethylene), to minimize the deployment force and friction of the stent.

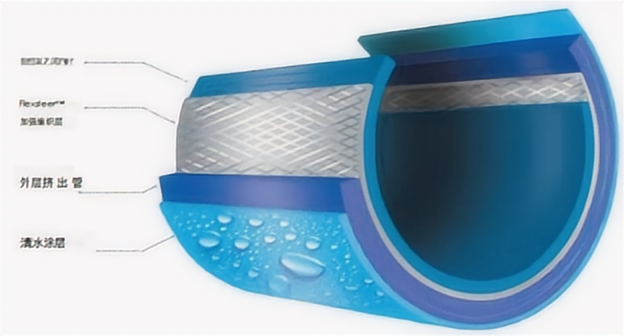

- The design of braid and/or coil reinforcement is essential to the device's performance, which may involve variations in braid density and coil pitch along the catheter's length.

- A combination of polymer jackets may be utilized along the catheter's length to achieve the desired performance characteristics.

- Hydrophilic coatings can be applied to the outer diameter of the catheter to reduce friction with the patient, minimize trauma, and facilitate easier insertion and retraction by clinicians.

- Radiopaque markers are usually required along the catheter shaft to assist clinicians in successfully completing the procedure under fluoroscopy.

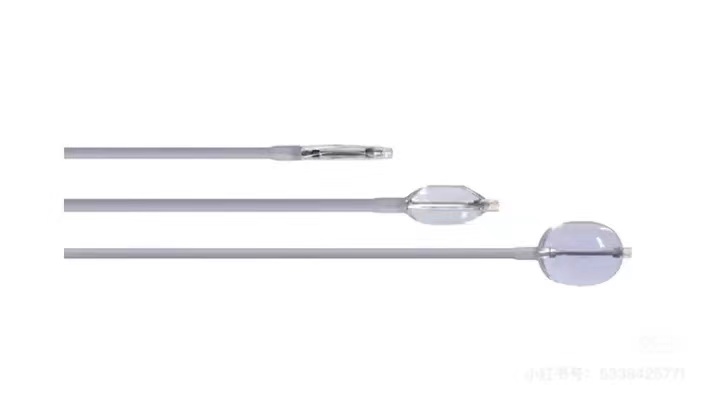

- For balloon-expandable stents, a compliant balloon is necessary, designed to minimize the potential for balloon growth during the procedure.

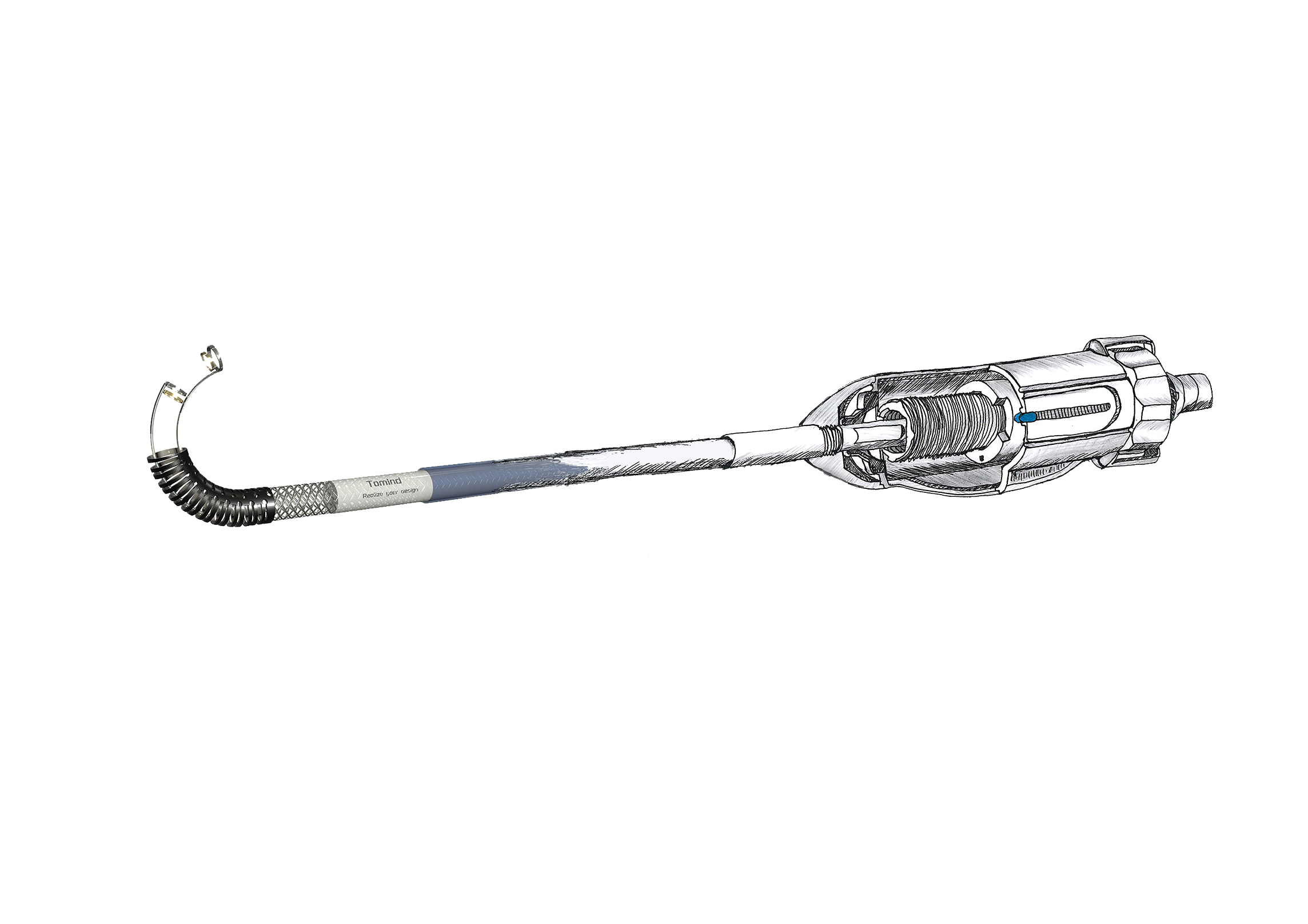

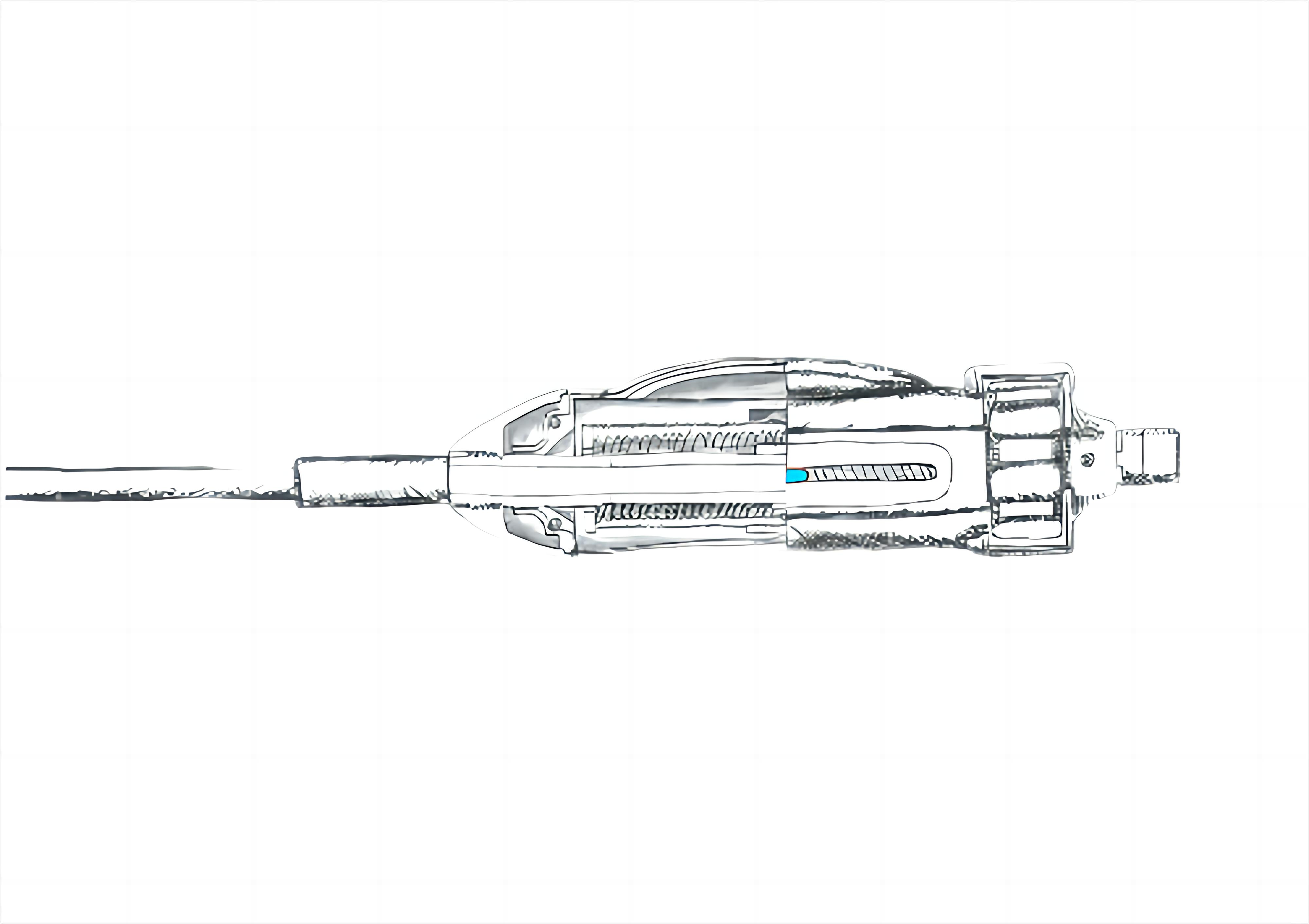

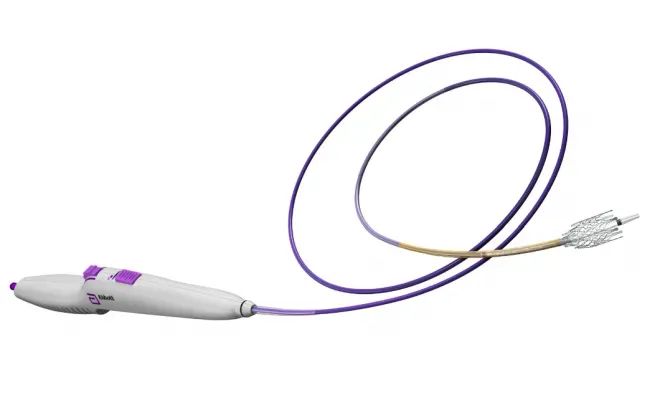

- A combination of catheters and handles is typically required to meet the functional demands of the delivery system.

In conclusion, the design of stent delivery catheters is a complex process that necessitates a comprehensive understanding of the catheter's physical properties, material characteristics, and specific clinical application needs. Continuous research and improvement are vital to designing safer and more effective stent delivery systems, thereby enhancing the success rate of endovascular interventions.
